The Craftsmanship Secret Behind the Shine: Why Is the Electroplated Layer Crucial for Silver Jewelry?

In the daily operations of jewelry manufacturing and cross-border export, we often hear clients discuss designs, styles, and the brilliance of gemstones. However, whether a piece of silver jewelry can withstand the test of time and retain its captivating luster during daily wear often depends on a hidden, unseen element: the electroplated layer.

For S925 silver jewelry, electroplating is not merely a decorative finish; it is a critical line of defense that determines product quality, longevity, and market competitiveness. Today, let’s explore three key dimensions of silver jewelry electroplating that cannot be overlooked.

I. Core Pain Point: Why Does Silver Tarnish Easily? How Does Electroplating Provide Protection?

Pure silver (such as S925 silver) is chemically relatively reactive—an unavoidable aspect of its nature:

 Oxidation by Air: When exposed to air, silver readily reacts with trace amounts of hydrogen sulfide ($H_2S$) to form a thin film of black silver sulfide ($Ag_2S$); this is the phenomenon commonly known as "tarnishing" or "turning black."

 Corrosion by Sweat: The pH levels and trace elements in human sweat can accelerate surface discoloration and the loss of luster in silver jewelry.

The Protective Role of the Electroplated Layer:

Using the principle of electrolysis, a dense protective layer of precious metal (such as rhodium or gold) is deposited onto the silver base. This completely isolates the silver from direct contact with air and sweat. This "protective armor" not only significantly delays the oxidation and tarnishing process but also increases surface hardness, reducing the fine scratches caused by daily wear and keeping the jewelry looking new for longer.

II. Choosing the Base Layer Process: Palladium, Copper, or Nickel—Which Is Best?

High-quality electroplating is never achieved in a single step. To ensure the top layer (such as rhodium or gold) bonds perfectly with the silver base and to prevent the underlying metal from leaching through, a base layer must be applied first. There are three common base metals used in the industry today:

1.Nickel:

Characteristics: Excellent smoothness and low cost; historically widely used.

Drawbacks: Many people are allergic to nickel (it can trigger contact dermatitis), and the EU and high-end Western markets enforce strict legal limits on nickel release. It is currently being phased out in compliant, high-quality jewelry.

2.Copper:

Characteristics: Good electrical conductivity and moderate cost; often used as an intermediate base layer in specific manufacturing processes.

Drawbacks: If the barrier layer is incomplete, copper from the base can diffuse outward over time, causing the surface layer to discolor or turn reddish.

3.Palladium:

Characteristics: A precious metal in the platinum group, offering excellent corrosion resistance, ductility, and superior resistance to diffusion. Crucially, palladium is hypoallergenic and extremely skin-friendly.

Conclusion: In terms of quality, regulatory compliance, and long-lasting protection, palladium underplating is undoubtedly the best choice for high-end silver jewelry and Vermeil pieces.

III. Thickness, Color Retention, and Cost: Balancing Quality and Price Competitiveness

In practical custom manufacturing and wholesale operations, the thickness of the plating layer (usually measured in micrometers, $\mu m$) directly determines the product's color retention and cost:

Standard Plating (e.g., micro-rhodium/gold plating): Thin plating (typically around $0.05\mu m - 0.1\mu m$) with controlled costs; suitable for fast-fashion markets and styles with high turnover, though color retention is relatively short.

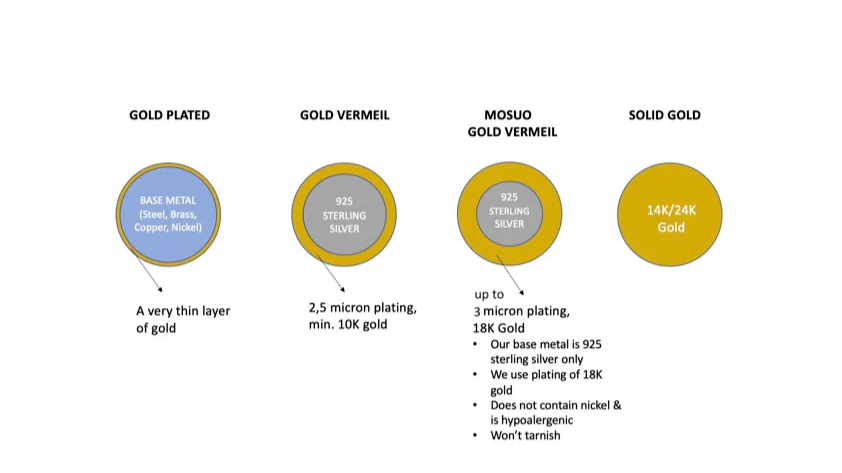

Heavy Gold/Vermeil Process:

What is Vermeil? It is a high-standard gold plating process (typically requiring a sterling silver base and a gold layer thickness of $2.5\mu m$ or more).

Pros and Cons: It offers exceptional color retention and a rich, substantial feel that rivals solid gold jewelry. However, the high volume of precious metal used results in significant costs, making it difficult to compete on price in price-sensitive markets. o

Striking the Right Balance:

For manufacturers and brands, the optimal approach lies in "precise scenario matching":

For high-end designer brands or collections emphasizing heirloom-quality durability, opt for a "palladium base + thickened top layer" (e.g., a rhodium layer exceeding 0.2μm or meeting Vermeil standards) to highlight exceptional longevity and high added value.

For mass-market commercial lines and general retail, utilize optimized plating parameters—such as precise micron-level control and high-quality sealant treatments—to maintain essential oxidation resistance while keeping costs within a highly competitive range.

Conclusion

Quality lies in the details. The choice of plating process reflects a brand's commitment to its products. Which combination of techniques does your brand or store prefer when plating silver jewelry? Feel free to share your thoughts in the comments section!

#SilverJewelry #VermeilJewelry #JewelryManufacturing #S925Silver #JewelryPlating #CustomJewelry #FineJewelry #SilverCare #JewelryDesign #B2BJewelry
